[BDB 11gR2 Beta] [#18298] First Questions about DBD 11gR2

Fri Feb 26 03:57:47 PST 2010

Hi George,

                I followed your instructions and had success building the db
library, db_sql and db_sql_jdbc projects, but when I executed

the command for test in build_windows/Win32/Debug I got a SQLITE prompt and
the test.db-journal directory was created but it is empty.

                Should I execute any command on SQLITE prompt?

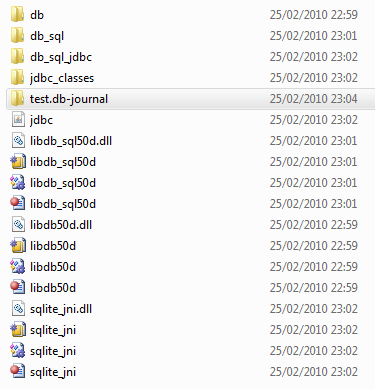

                See below the files created in build_windows\Win32\Debug
directory.

Regards,

Luis

From: George Feinberg [mailto:george.feinberg at oracle.com]
Sent: quinta-feira, 25 de fevereiro de 2010 17:36
To: Luis Paolini
Cc: 'Sandra Whitman'; 'Dave Segleau'; bdb-beta-feedback at oss.oracle.com;
'Sleepycat Software Support'; 'Fernando Targa'; 'Kent Rollins'
Subject: Re: [BDB 11gR2 Beta] [#18298] First Questions about DBD 11gR2

Luis,

Sandra is out today so I'll help.

I just tried what was sent to you for instructions and they worked, with

some modifications:

1.  I added the db_sql_jdbc project and changed the Linker->General->Output
File to $(OutDir)/sqlite_jni.dll

For good measure I also changed

Linker->Debugging->Generate Program Database File

and

Linker->Advanced->Import Library

similarly to add "sqlite_jni"

I don't think these are necessary but I did them.

2.  I had to build the db library first in the solution (project "db").  At
this time

the db_sql project depends on this so it's necessary.  This step may have
been missing

from your instructions.

3.  I then built the db_sql project

4.  I then built the db_sql_jdbc project

5.  The command for testing is, in build_windows/Win32/Debug (or Release if
you built that):

            java -classpath jdbc.jar -Djava.library.path=. SQlite.Shell
test.db

That worked.  The test.db and test.db-journal were populated correctly.

 I happen to be using Visual Studio 2008 Express on Windows 7 but if
anything

VS2005 will be smoother since there are no project file conversions
required.

If you start over you should start with a clean directory.  Also make sure
that your

PATH does not accidentally point to any old DB- or SQLite-related dlls.

Regards,

George

On Feb 25, 2010, at 6:47 AM, Luis Paolini wrote:

Hi Sandra,

      Thanks for the detailed instructions.

I followed the steps below and got an error on step 8 (building the
solution).

      Here are some details for each step.

0)  From the "Building the Java API" section of the Building Berkeley DB for
Windows documentation:

I configured the directories according to my java jdk installation.

C:\Program Files\Java\jdk1.6.0_16\include, C:\Program
Files\Java\jdk1.6.0_16\include\win32 and

C:\Program Files\Java\jdk1.6.0_16\bin

      2) Apply the attached patch 18298_win_jdbc.diff

      I installed the patch application and executed the command:

      D:\Downloads\Oracle\Berkeley_Beta\db-5.0.11\db-5.0.11>"C:\Program
Files\GnuWin32\bin\patch.exe" -p1 -i 18298_win_jdbc.diff

      I'm not sure if I had to modify the file 18298_win_jdbc.diff before
running the patch. (Something related to Windows end-of-line

Endings)

      3) Copy the attached "Constants.java" file into the sql/jdbc/SQLite/
directory.

      Just copied the file "Contants.java" into
D:\Downloads\Oracle\Berkeley_Beta\db-5.0.11\db-5.0.11\sql\jdbc\SQLite

      4) Open the build_windows/Berkeley_DB.sln file in Visual Studio

      Opened build_windows/Berkeley_DB.sln file in Visual Studio

      5) Select "File->Add->Existing Project", and add
"build_windows/db_sql_jdbc.vcproj" into the solution.

      Just added build_windows/db_sql_jdbc.vcproj" into the solution.

6) Right-click db_sql_jdbc in the solution explorer, and select
"Properties".

Ok.

7) In Linker->General. Set the "Output File" to be
"$(OutDir)/sqlite_jni.dll" (it is "$(OutDir)/.dll" before you change it).

Configured the "Output File" to be "$(OutDir)/sqlite_jni.dll"

8) Either build the solution, or the "db_sql" project.

After building the solution I got the following summary:

========== Build: 57 succeeded, 1 failed, 0 up-to-date, 10 skipped
==========

Looking for the fail, I got this:

5>Linking...

5>LINK : fatal error LNK1181: cannot open input file 'libdb_sql50d.lib'

5>Build log was saved at
"file://d:\Downloads\Oracle\Berkeley_Beta\db-5.0.11\db-5.0.11\build_windows\
Win32\Debug\db_sql_jdbc\BuildLog.htm
<file:///d:\Downloads\Oracle\Berkeley_Beta\db-5.0.11\db-5.0.11\build_windows
\Win32\Debug\db_sql_jdbc\BuildLog.htm> "

5>db_sql_jdbc - 1 error(s), 1 warning(s)

      The BuildLog.htm file is attached.

      After that I tried to rebuild the "db_sql" project and I got the
following summary:

========== Rebuild All: 2 succeeded, 0 failed, 0 skipped ==========

9) Build the db_sql_jdbc project. The project assumes you have Java (1.6)
installed in your path.

Finally, I Built the db_sql_jdbc project and got the following summary

========== Rebuild All: 1 succeeded, 0 failed, 0 skipped ==========

Testing:

I executed the command java -classpath jdbc.jar -Djava.library.path=.
SQLite.Shell test.db

The SQLite console was opened.

The directory test.db-journal was created by it was empty.

Regards,

Luis
